6m3 850kg steel frame Six cube Reck Slurry Mixers

Name: 6m3 850kg steel frame Six cube Reck Slurry Mixers
Brand: SANKON
Price: 1 USD

Wholesale 6m3 850kg steel frame Six cube Reck Slurry Mixers from china suppliers

Brand Name : SANKON

Model Number : 6m³

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1SET

Price : USD1~24000/SET

Payment Terms : L/C, T/T

Supply Ability : 2000SETS/YEAR

Delivery Time : 1MONTH

Packaging Details : SUIT FOR SHIPPING

Contact Now

Six-cube Slurry Mixer

Application:

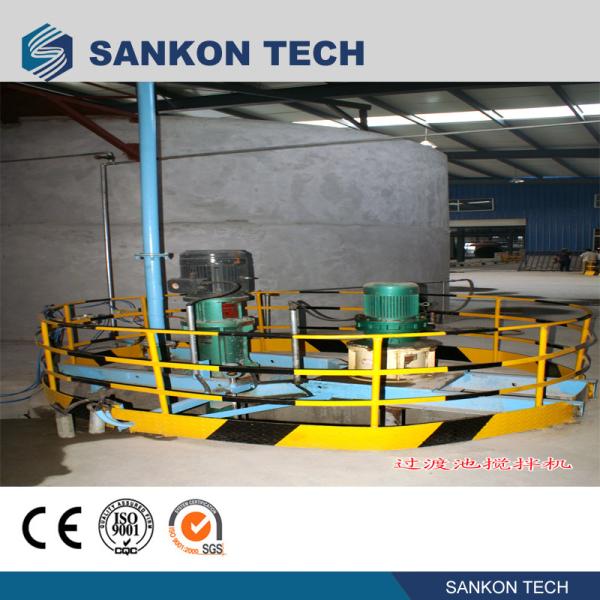

The Six-cube Slurry Mixer (refer to the photo and drawing) is especially used to mix the lime, Steam Aerated concrete arenaceous powder, water completely to form slurry.

6m3 850kg steel frame Six cube Reck Slurry Mixers

Structure:

Mortar mixer is composed of helical gear reducer, channel steel frame, shaft and mixer, etc

Helical gear reducer should be installed in a vertical position

Roller and mixer are welded together.

Working principle:

The mortar mixer is used to mix the lime, Steam Aerated arenaceous powder, water completely to form slurry. Mixer is driven by helical gear reducer, which rotate counterclockwise from up to down.

Technical parameter:

Size (Maximum)
Lenth	2500	mm
Width	1400	mm
Height	2775.5	mm
Weight	850	kg
Helical gear reducer:
Model	CRM97-59.7-Y-5.5-V1
Power	5.5	KW
rotate speed	1440	r/min
Speed ration	i=59.7

Maintenance and repair

Maintenance:

Please make sure that there is no slurry in the basin before stop working. Otherwise, the mixer may be damaged because of slurry sedimentation.

Please check lubricating oil of the reducer and to fill timely. Normally, lubricating oil is expected to be changed after six monthsTo clean the mixer and its basin after every day’s work.

Repair:

Please check all fasteners to avoid any possible loose and change worn parts.
